Project Overview

Mechanical design and development of the caravan mover product, including motor assembly design, thermal analysis, dyno testing, prototype development, and pilot production runs. Features CNC machined components and diecast chassis.

Skills Used

Mechanical Design Thermal Analysis CNC Machining Prototyping Testing Manufacturing

SAFETY DAVE - Caravan Mover Mechanical Design

Dyno for caravan mover

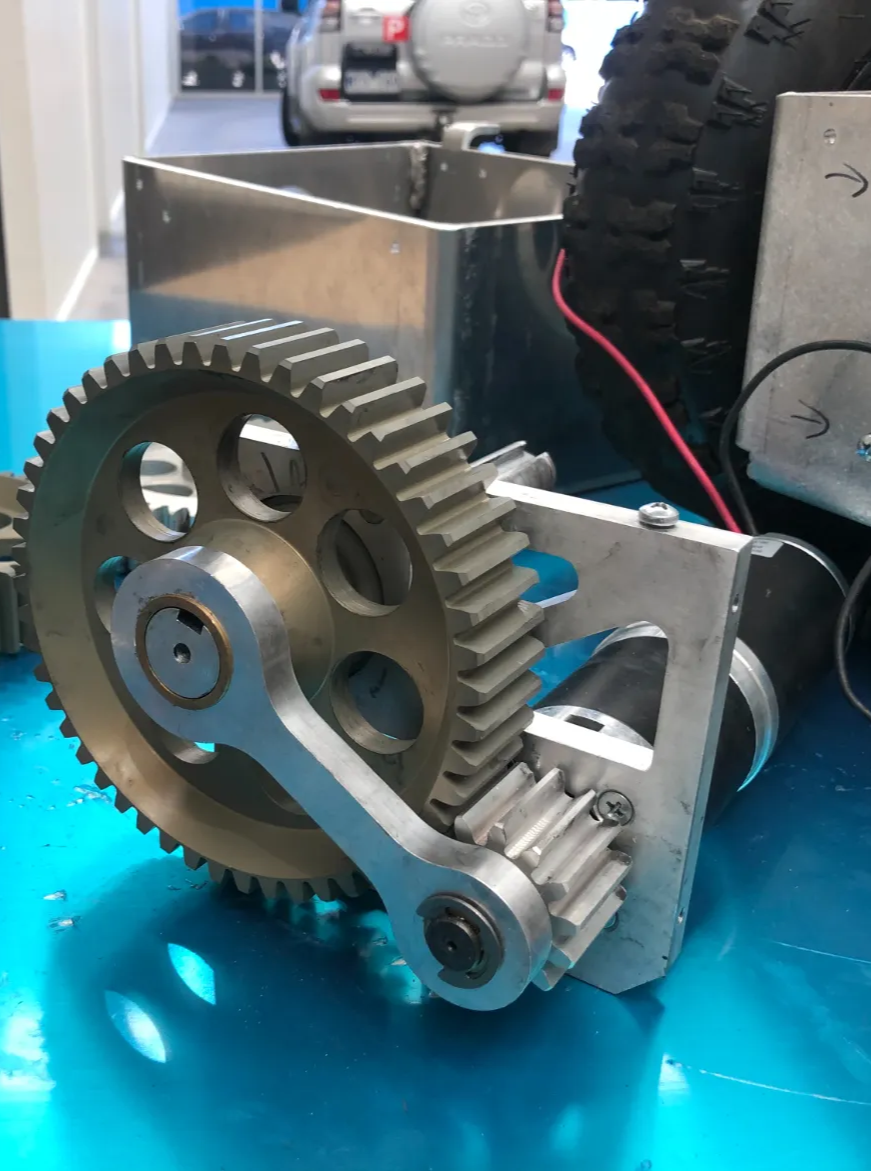

Prototype motor assembly

Final motor assembly

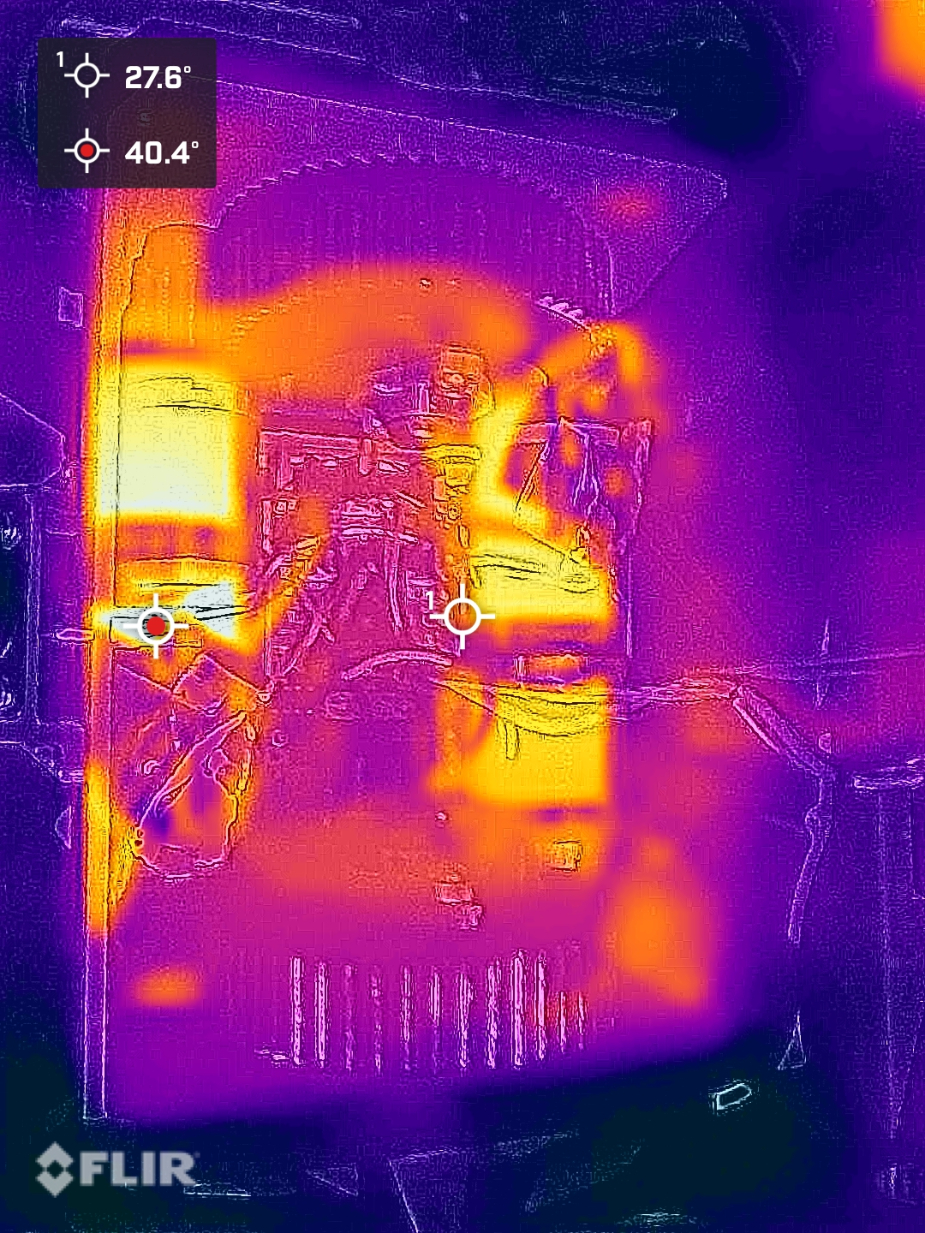

Thermal analysis of internal temps

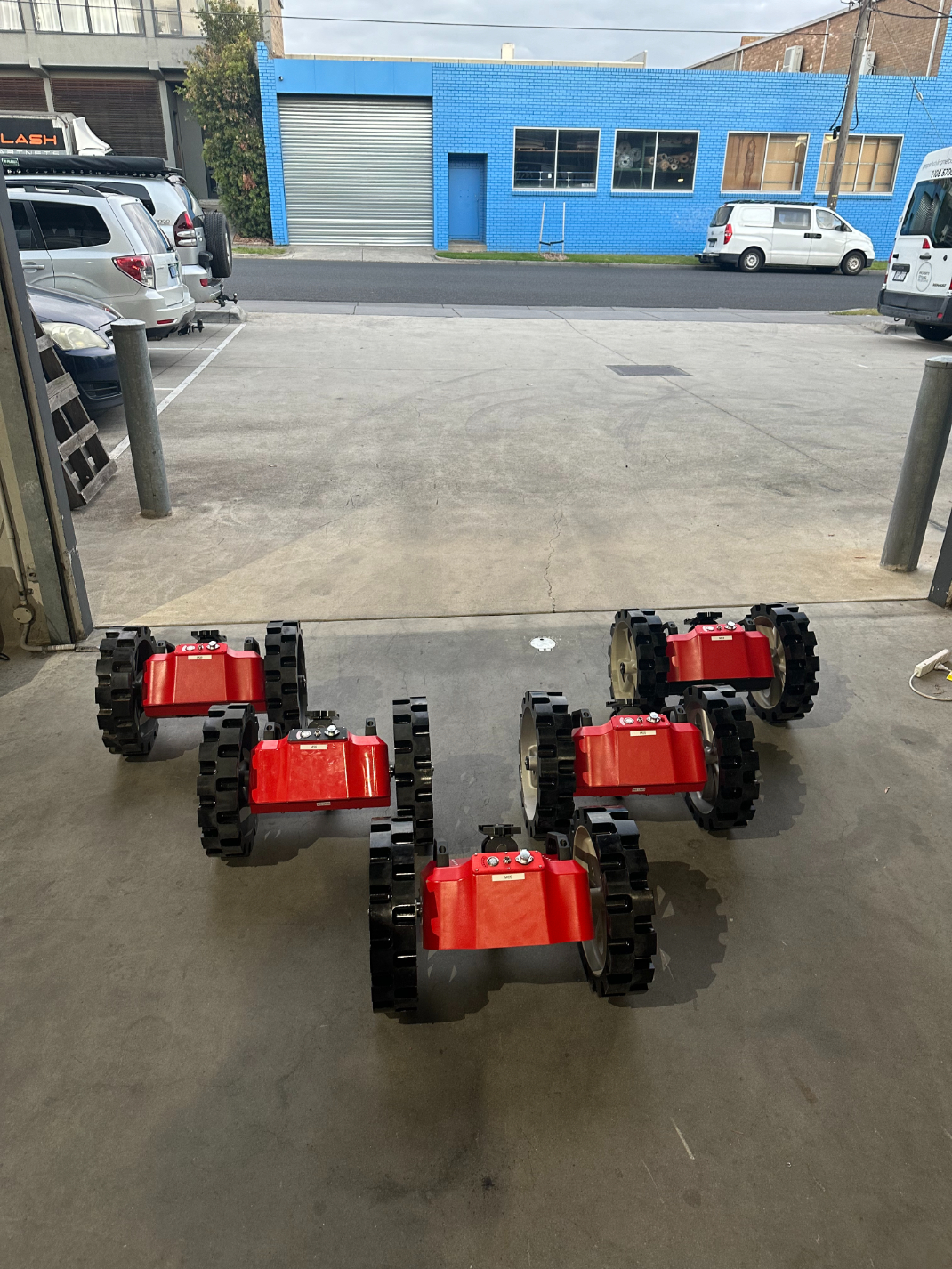

Pilot production run

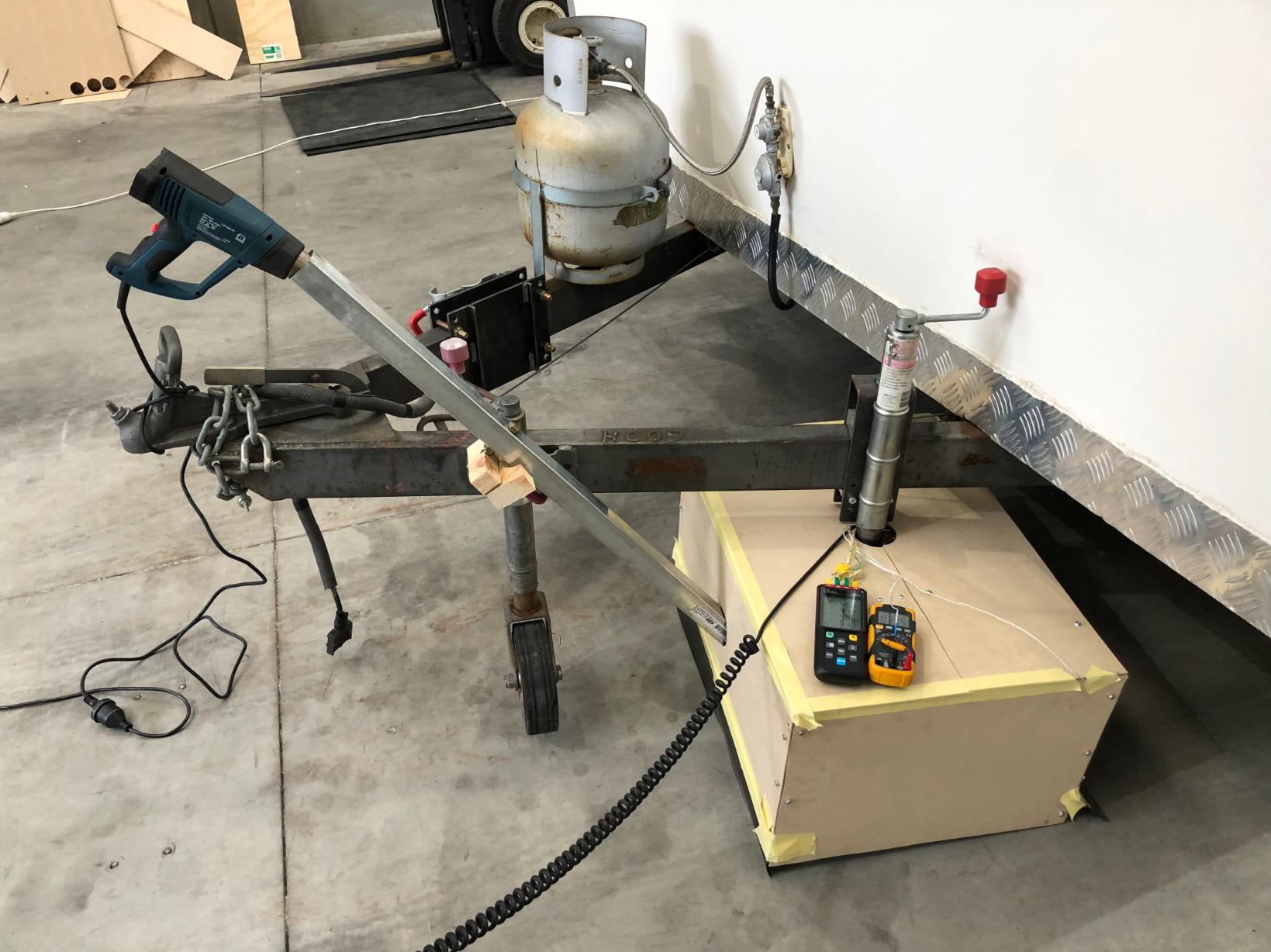

Testing setup for thermal torture testing

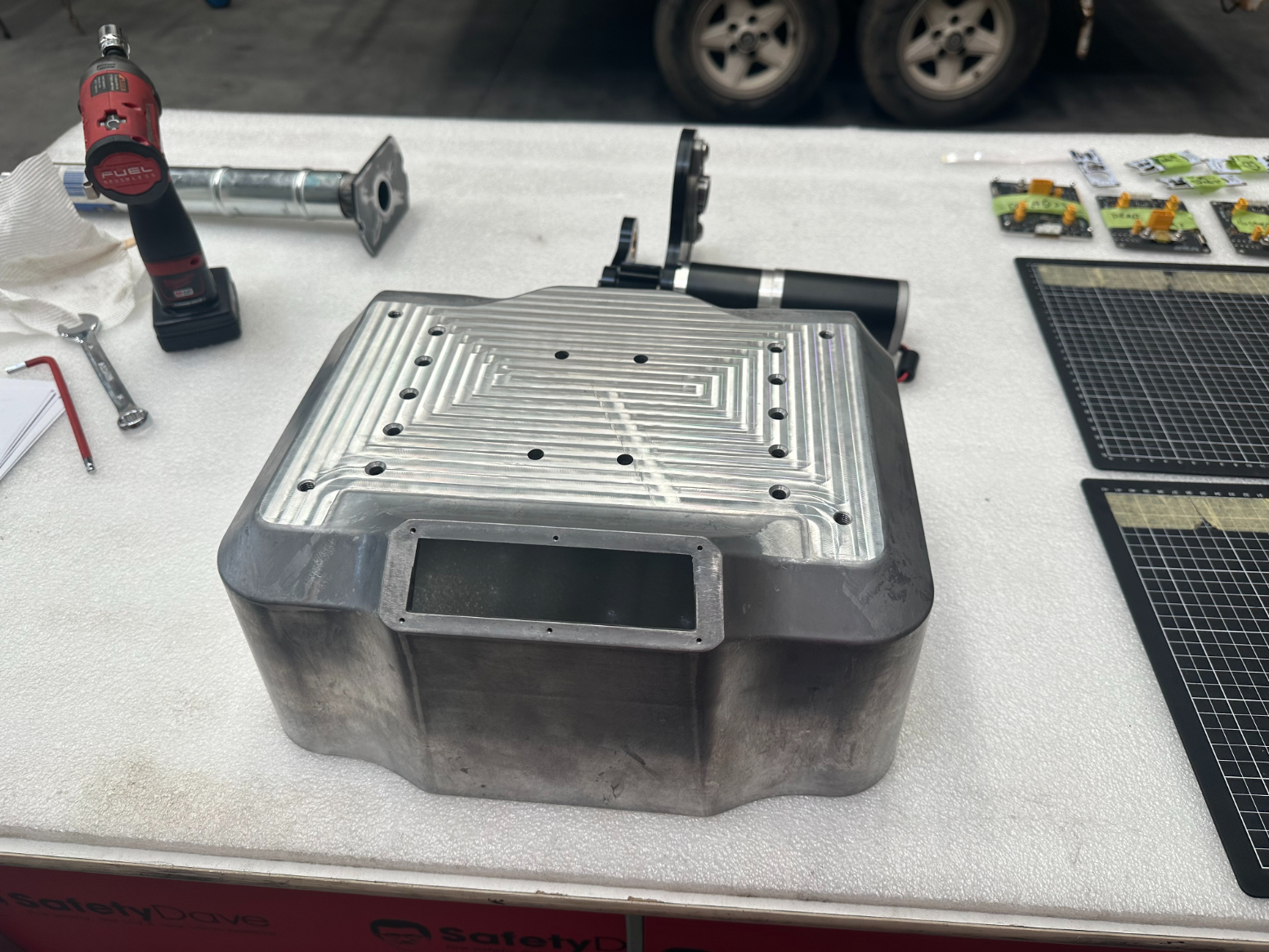

Diecast chassis after post machining before paint

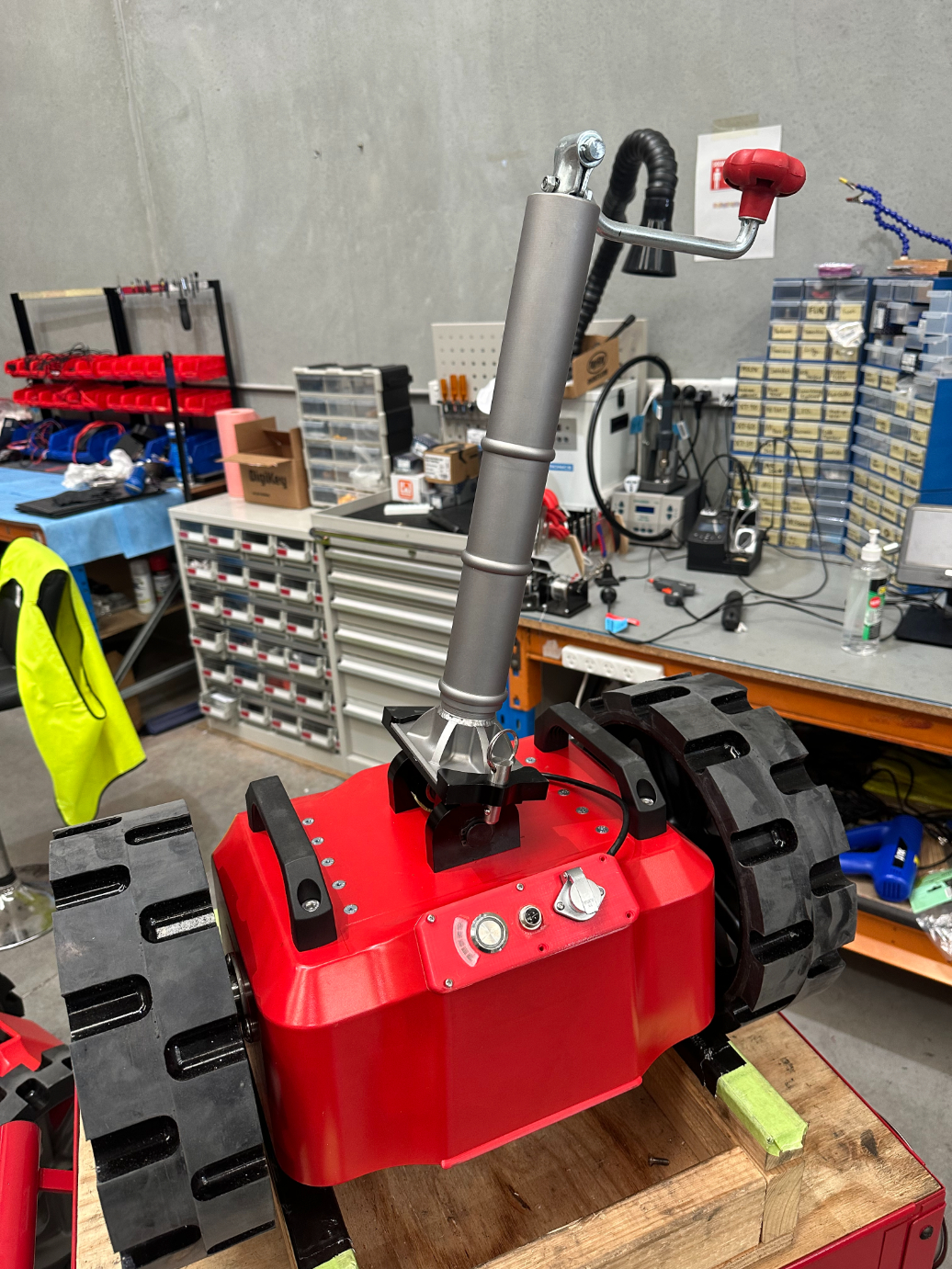

Assembled mover with new jockey wheel

Assembled mover with new jockey wheel, featuring CNC machined mount

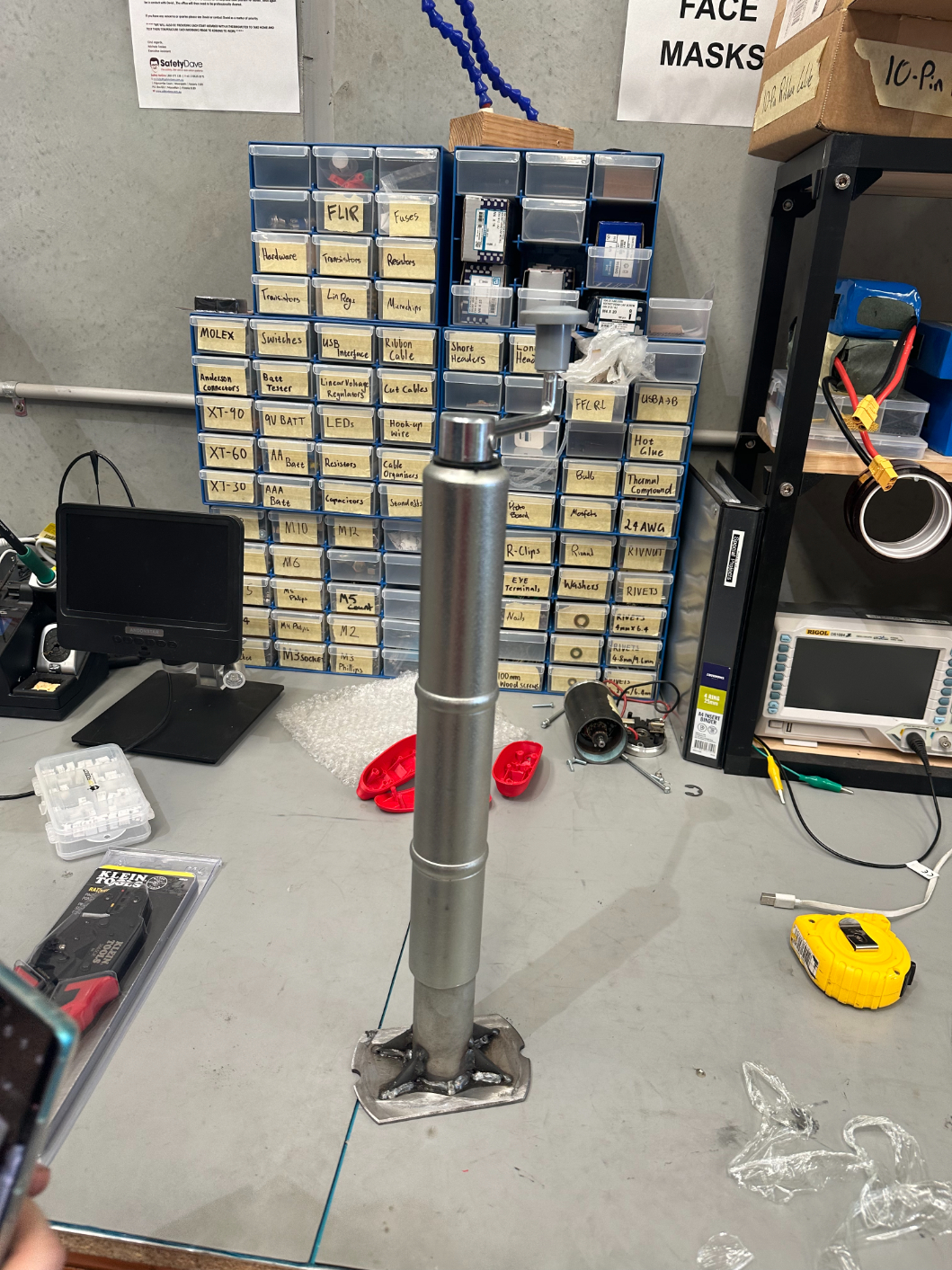

Old jockey wheel with welded mount

Old jockey wheel with welded mount, failed testing

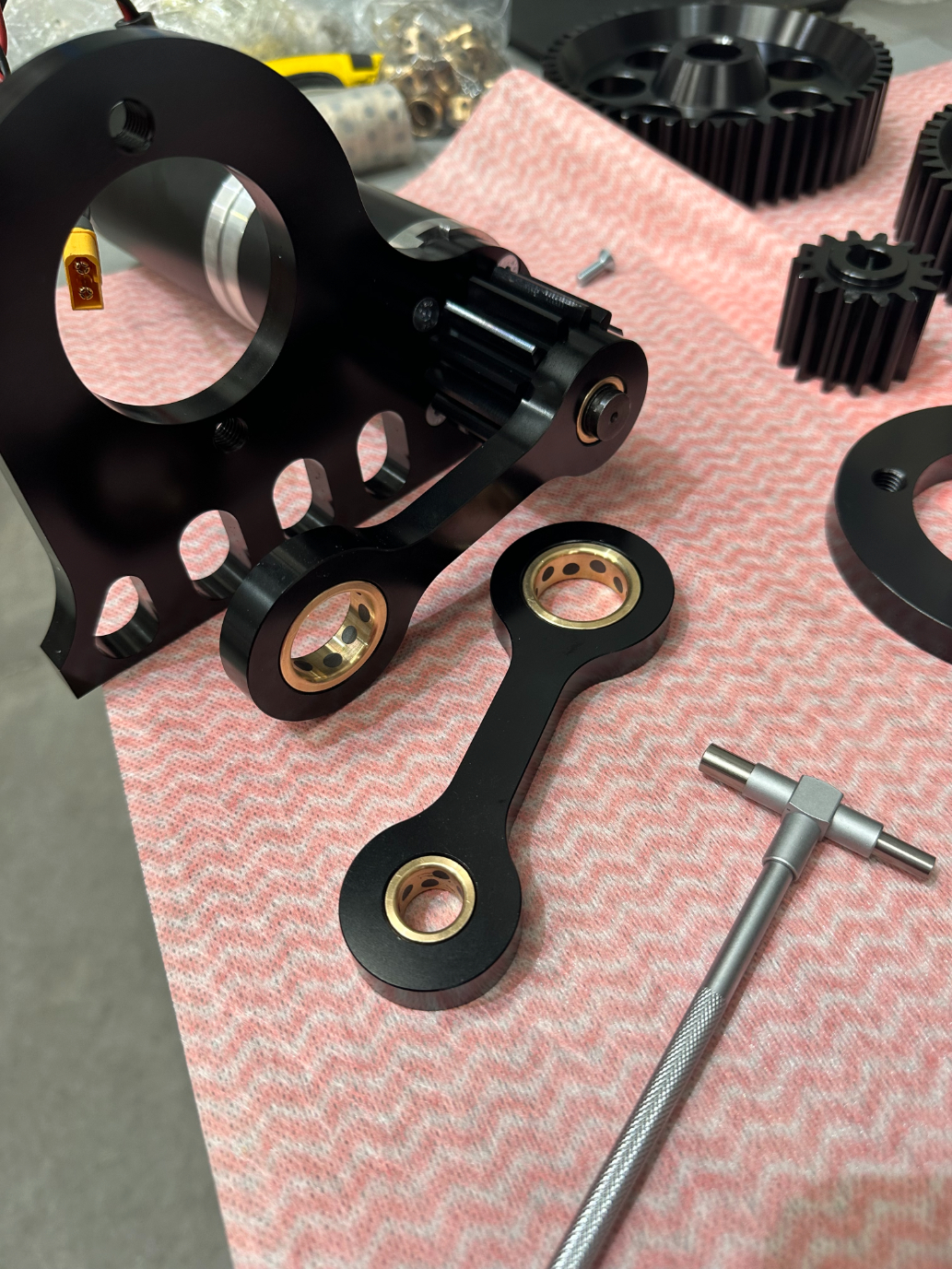

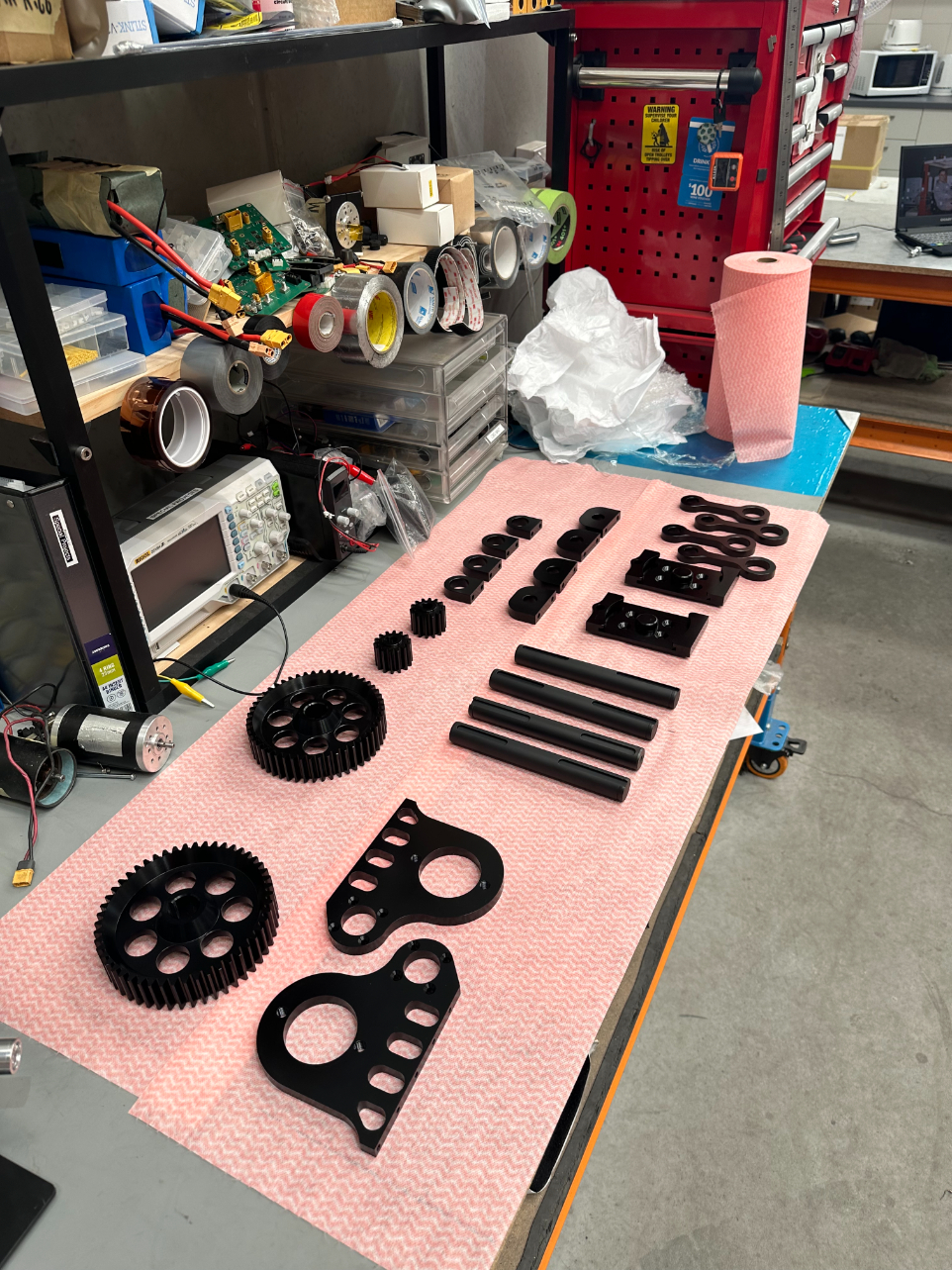

CNC machined parts for final assembly
